Flexible rod conveyor belt
Flexible rod conveyor belt consists of cross rods with overlaying alternating spiral coils. It is equipped with flexible u-shaped edge for side flexibility. This kind of mesh belt is especially designed for spiral or round conveyor as well as straight-running conveyor.
alternative mesh belting for extremely heavy-loading transportation. Rod and spiral alternating coils structure efficiently improve production and reduce downtime. Owing for robust construction, this rod conveyor belting need far less maintenance. Besides, Flexible Rod belts can also be supplied with a link in the centre of the belt width to decrease its turning radius, as well as side guards to prevent product spillage.
Apart from these advantages, stainless steel rod conveyor belts also have excellent corrosive resistance satisfying hygiene requirements for food processing.
Rod conveyor belting is available installed with side plates to add the height of product to be transported. Cross flights are also provided to separate the products to be transferred. Besides, radius rod conveyor belt is provided on request.
Specifications:
Material: carbon steel, SS 201, SS 304, SS 316
Cross rod pitch: 5 mm to 50.8 mm
Chain side guard height: 24 mm, 26 mm, 38.1 mm
Chain link thickness: 2 mm, 2.5 mm, 2.7 mm, 3.1 mm
Cross rod diameter: 4 mm to 16 mm
Spiral/coil wire diameter: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm
Width of conveyor belt: 200 mm to 5,000 mm
Special specifications can be customized
Features of flexible rod conveyor belt
Smooth and burr-free. The finish is smooth and burr-free for quick and easy cleaning, maximizing production.
High temperature resistance. The stainless steel material can maintain the perfect performance even in the extremely high or low temperature applications.
Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent chemical stability, which are corrosion and rust resistance.
Durable and long service life. The high quality material and rigid structure can ensure the long lifespan of the flexible rod conveyor belt
Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install and replace.
U-shaped links can be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the U-shaped conveyor belt are added onto the center of the conveyor belt.
Side guards are available. Side guards can be added on both side of the conveyor belt to prevent products from spillage.
Edge Availability
Flexible Rod Belt edge has different types, which can be standard U-shaped link and U-shaped link edge with reinforced rod. they're all solid and sturdy. you can choose them according to your applications and products you want to convey.

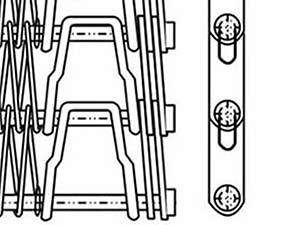

Flexible Rod Belt with standard U-shaped link edge

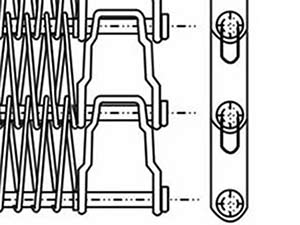

Flexible Rod Belt with standard U-shaped link and reinforced plate
Applications
Whether used on spiral or straight conveyors, the Flexible Rod Belt is particularly suitable for cooking, cooling or freezing products such as bread, pastry, vegetables, potatoes, fish and meat. It can also be used for blanching vegetables, proofing dough, drying, baking or pasteurising.
Spiral Freezer Belt
Spiral Cooler Belt
Spiral Proofer Belt
Spiral Dryer Belt
Spiral Cooker Belt
Spiral Heating Belt
Turn Curve Transfer Belt
Transfer and Packaging Belts
