Compound Weave Conveyor Belts
Compound Weave Conveyor Belts, also named cordweave belt or v-shaped conveyor belt, have right-hand and left-hand spirals interconnecting by straight cross rods. The compound belt is essentially a balanced spiral belt that has multiple spirals and cross rods per pitch. This compound structure closes up the apertures within the belt, giving compound weave its characteristic high density and flat surface. It is similar to a balanced weave besides smaller opening and far denser weave. As a result of this construction, Compound Weave Conveyor Belts offer an extremely close and flat mesh for applications where very small items are being conveyed. The compound weave also provides a uniform heat transfer across the belt due to its high density and smooth carrying surface. These characteristics make compound weave a popular choice in a wide variety of applications, ranging from biscuit baking to sorting small mechanical components.
Commonly, the material for making compound balanced belting is Stainless steel 304 or 316L and high carbon steel. The belt can be driven by friction rollers or chains. In some cases, products need to be upgraded or separated, and we can also provide cross flights and side plates according to user needs.
Product description:
Features of compound weave conveyor belt
• Small open area. The compound weave conveyor belt has a little open area, which is suitable to conveyor the small items.
• Use multiple environments. High resistance against acid, alkaline, chemical, abrasion, and corrosion.
• High tensile strength. The compound weave conveyor belt has multiple spirals and cross rods on each pitch, so it can supply higher tensile strength than other types of conveyor belt.
• High-temperature resistance. The compound weave conveyor belt is made of high-quality materials, including stainless steel and nickel alloy steel, which have excellent temperature resistance performance.
• Durable and long service life. The unique structure and high-quality material can ensure the long service life of compound conveyor belt.
• Uniform heating. Provides uniform heat transfer across the belt.
• Baffles can be added. Different types of baffles can be added at the both side and center of conveyor belt for sorting and conveying products.
Belt Types

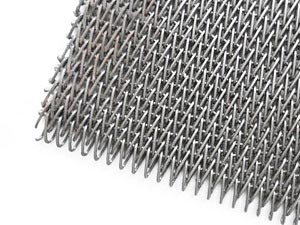

Round spiral wire compound weave conveyor belt
In this format both coil and cross wires are of round section.

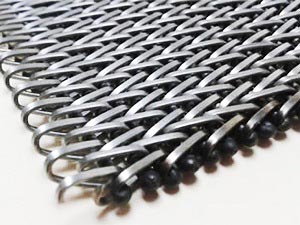

Flat spiral wire compound weave conveyor belt
In this format both coil and cross wires are of flat section. These styles are most useful to gain more surface area when handling small base area products.
Compound Weave Conveyor Belts, also named cordweave belt or v-shaped conveyor belt, have right-hand and left-hand spirals interconnecting by straight cross rods. The compound belt is essentially a balanced spiral belt that has multiple spirals and cross rods per pitch. This compound structure closes up the apertures within the belt, giving compound weave its characteristic high density and flat surface. It is similar to a balanced weave besides smaller opening and far denser weave. As a result of this construction, Compound Weave Conveyor Belts offer an extremely close and flat mesh for applications where very small items are being conveyed. The compound weave also provides a uniform heat transfer across the belt due to its high density and smooth carrying surface. These characteristics make compound weave a popular choice in a wide variety of applications, ranging from biscuit baking to sorting small mechanical components.
Commonly, the material for making compound balanced belting is Stainless steel 304 or 316L and high carbon steel. The belt can be driven by friction rollers or chains. In some cases, products need to be upgraded or separated, and we can also provide cross flights and side plates according to user needs.
Product description:

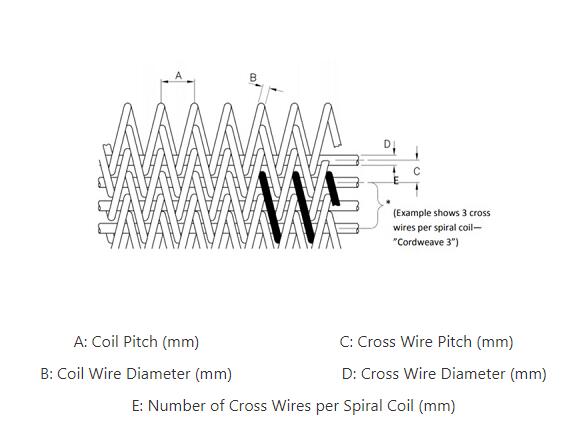

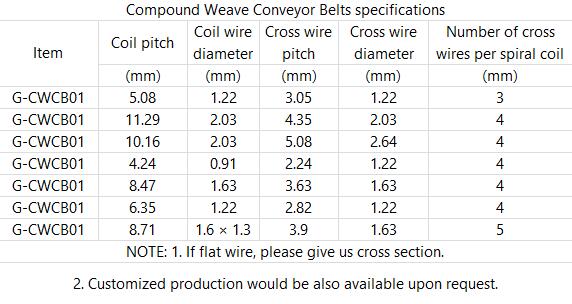

- Item: compound balanced belting.
- Material: carbon steel, SS 201, SS 304, SS 316, SS 314.
- Coil wire diameter: 1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm.
- Coil pitch: 6 mm to 20 mm.
- Cross rod diameter: 1.22, 1.63, 2.03, 2.64 mm.
- Cross rod pitch: 6 mm to 20 mm.
- Width: 200 mm to 3,000 mm.
- Edge finish: welded edge or chain edge.
- Max. Working temperature: depending on the material 550°C~1200°C
Features of compound weave conveyor belt
• Small open area. The compound weave conveyor belt has a little open area, which is suitable to conveyor the small items.
• Use multiple environments. High resistance against acid, alkaline, chemical, abrasion, and corrosion.
• High tensile strength. The compound weave conveyor belt has multiple spirals and cross rods on each pitch, so it can supply higher tensile strength than other types of conveyor belt.
• High-temperature resistance. The compound weave conveyor belt is made of high-quality materials, including stainless steel and nickel alloy steel, which have excellent temperature resistance performance.
• Durable and long service life. The unique structure and high-quality material can ensure the long service life of compound conveyor belt.
• Uniform heating. Provides uniform heat transfer across the belt.
• Baffles can be added. Different types of baffles can be added at the both side and center of conveyor belt for sorting and conveying products.
Belt Types
Round spiral wire compound weave conveyor belt
In this format both coil and cross wires are of round section.
Flat spiral wire compound weave conveyor belt
In this format both coil and cross wires are of flat section. These styles are most useful to gain more surface area when handling small base area products.
Edge Availability: welded edge, or chain edge.

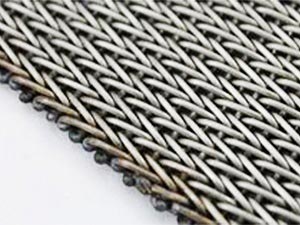

Compound weave conveyor belt with welded edge

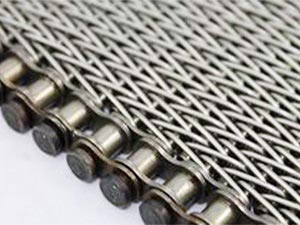

Compound weave conveyor belt with chain edge
Applications:

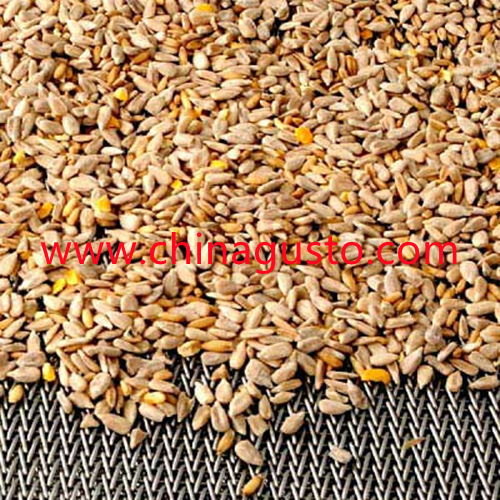

●Rice Handling
●Swarf Conveyors

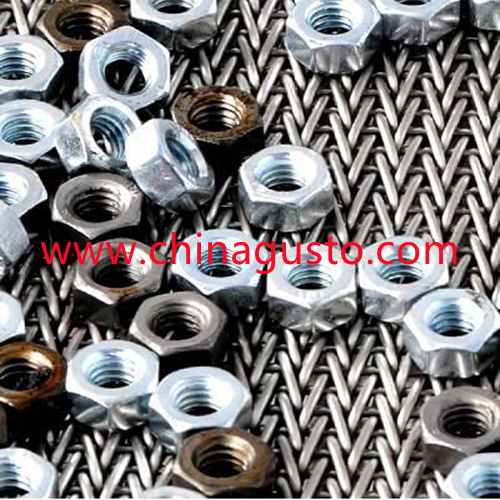

●Heat Treating of Small Fasteners
●Furnace Curtain
●Sintering of Powdered Metal Components
●Electro-Plating
●Accumulation Tables
●Seed Drying

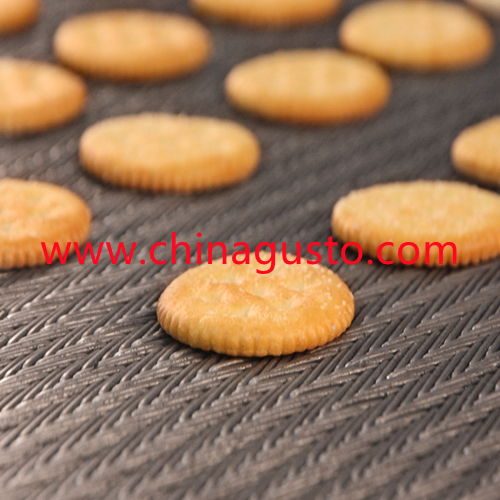

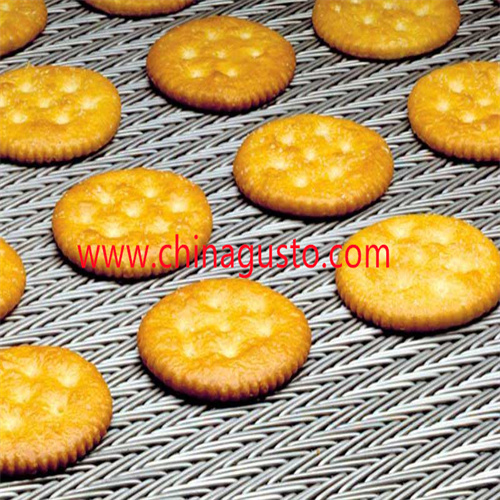

●Biscuits, tortillas, cookies and crackers baking
●Hardening, tempering, quenching.
●Glass works
●Electrotechnical industry
●Serving as pasteurizing belt

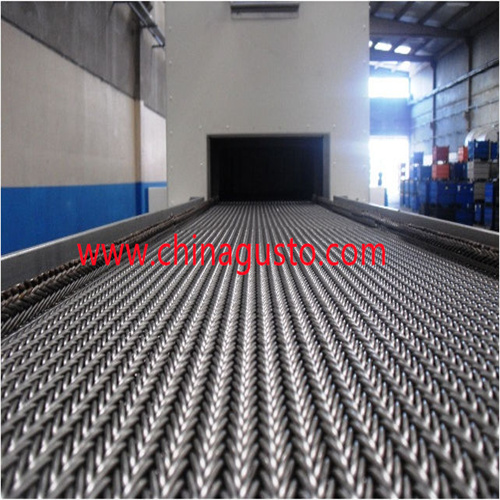

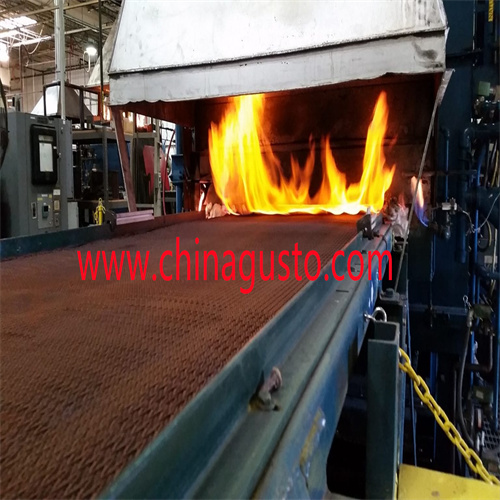

●Furnace belts
